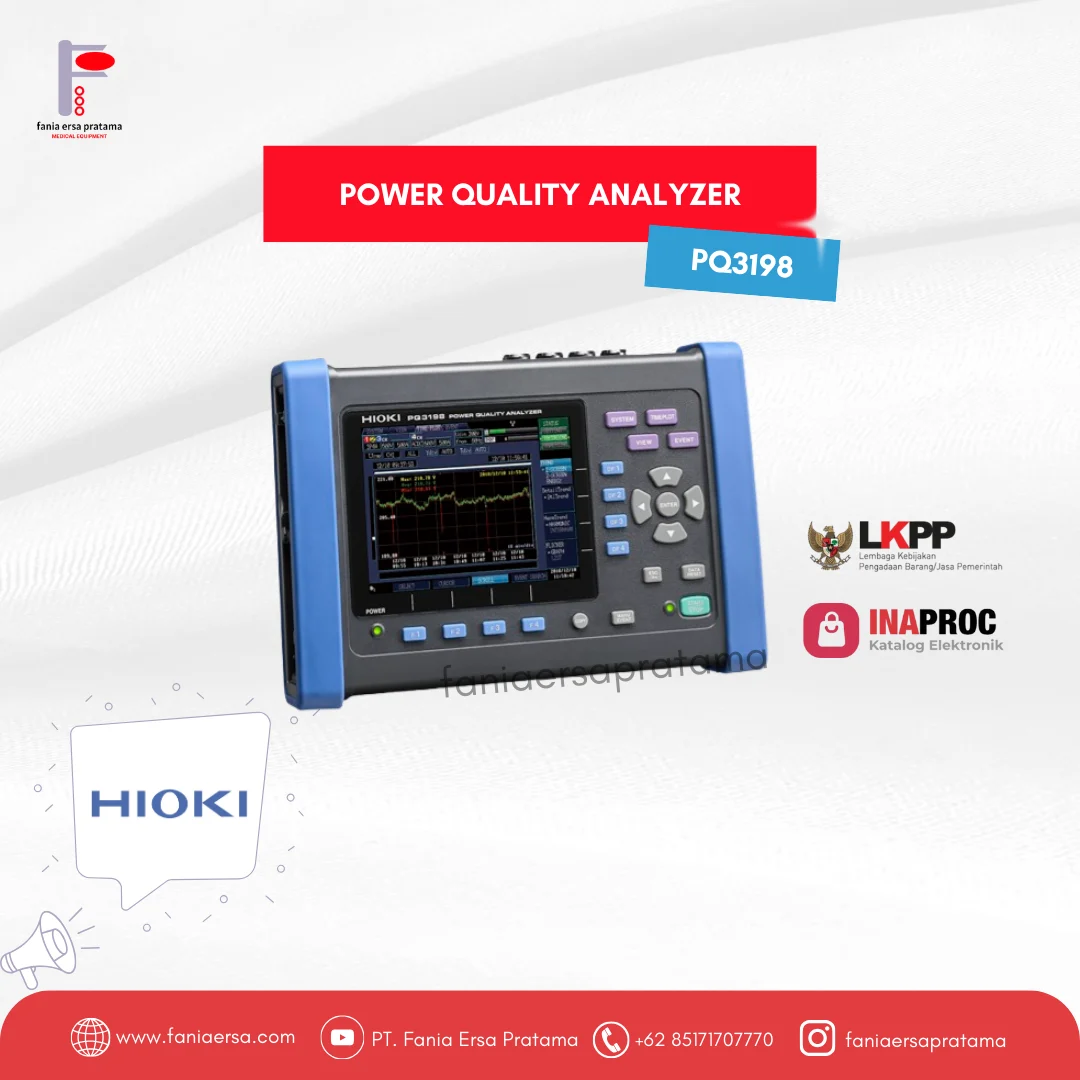

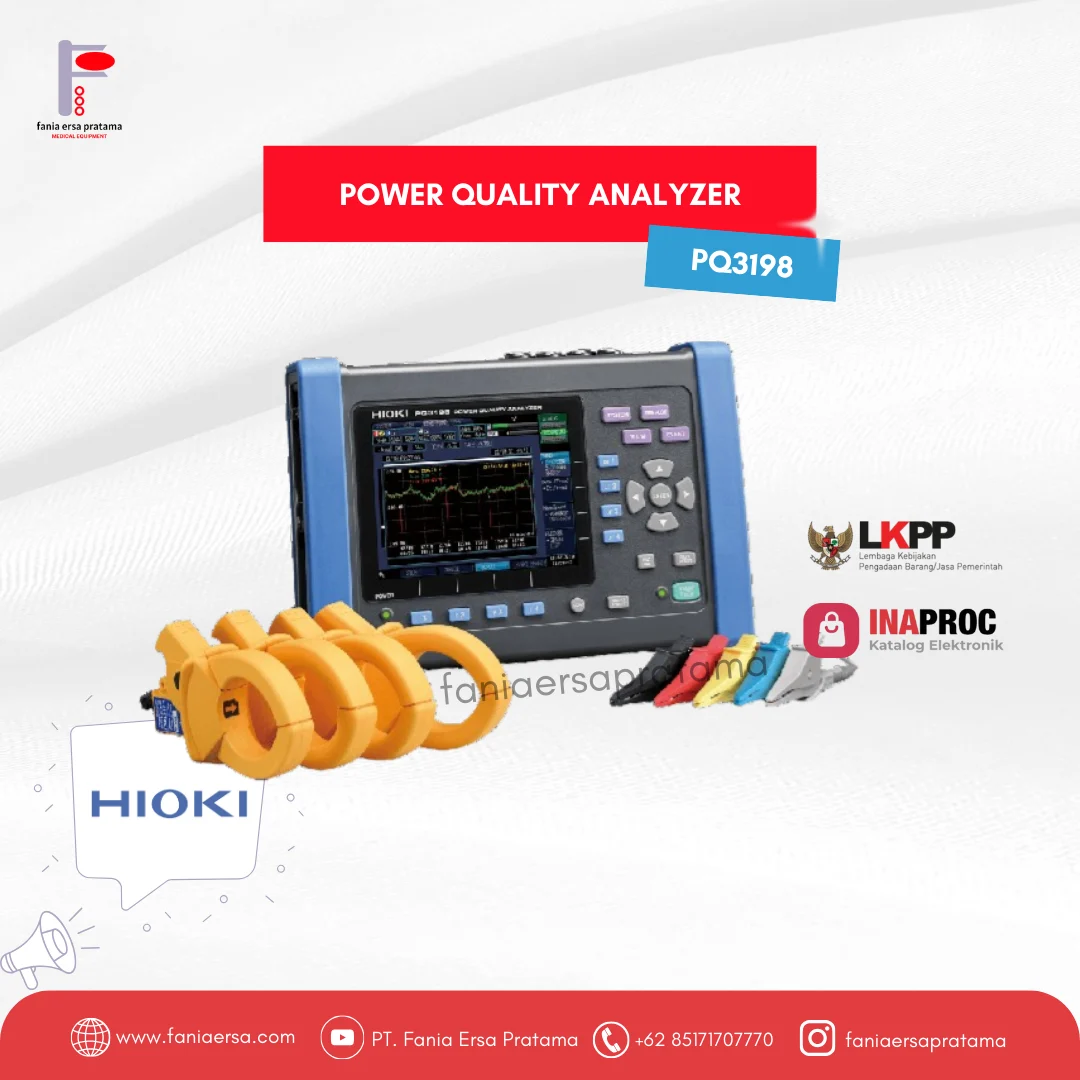

HIOKI QUALITY POWER ANALYZER PQ3198

Number of channels (Voltage: 4 / Current: 4); Input terminal type (n terminals (safety terminals) / Current: Dedicated connectors (HIOKI PL 14)); Connections (Any of the following + additional input to CH 4: 1-phase/2-wire 3-phase/3-wire/2 power meter 3-phase/4-wire/2.5 element 1-phase/3-wire 3-phase/3-wire/3 power meter 1-phase/3-wire/1 voltmeter *PQ3100 only 3-phase/4-wire); Input resistance (Voltage inputs: 4 MΩ / Current inputs: 100 K Ω); Maximum input voltage (Voltage inputs: 1000 V AC, ±600 V DC, 6000 Vpeak); Maximum rated terminal to-ground voltage (600 V AC (CAT IV) with an expected transient overvoltage of 8000 V); Sampling frequency (Parameters other than transient voltage: 200 kHz; transient voltage: 2 MHz); A/D converter resolution (Parameters other than transient voltage: 16 bits; transient voltage: 12 bits); Display range (Voltage: 0.48 V to 780 V / Current: 0.5% to 130% of range) (Power: 0.0% to 130% of range Parameters other than above: 0% to 130% of range); Effective measurement range (Voltage: 10 V to 780 V AC, peak of ±2200 V / 1 V to 600 V DC Current: 1% to 120% of range, peak of ±400% of range Power: 0.15% to 130% of range (When voltage and current both fall within the effective measurement range).

Ya

Unit

3.000,00 gr

P 0 cm x L 0 cm x T 0 cm (0 cm3)

–

–

–
